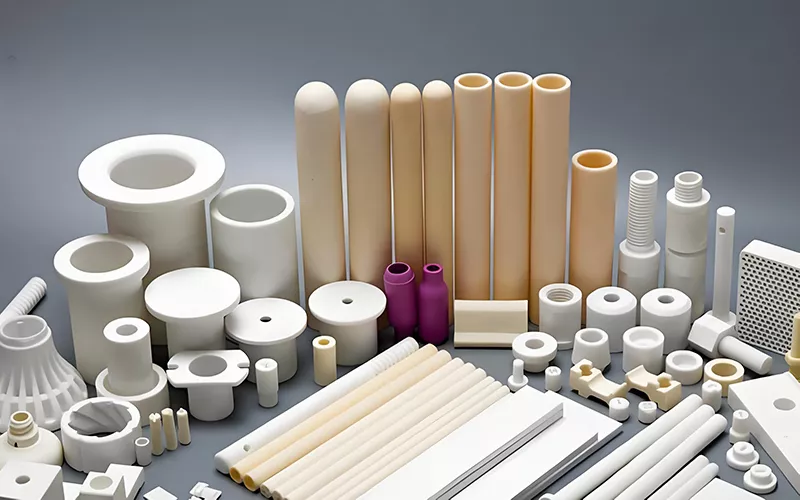

Silicate ceramics represent one of the oldest and most widely used classes of ceramic materials. From traditional pottery and construction materials to advanced electronic components, their versatility is unmatched. Built upon the fundamental chemistry of silicon and oxygen, these materials offer a unique combination of properties that make them indispensable across numerous industries. Understanding their structure, types, and applications reveals why silicate ceramics continue to be a cornerstone of modern material science.
This article explores the world of silicate ceramics, covering their essential properties, the different types available, and their wide-ranging applications. We will look at what makes these materials so special and why they are crucial for both historical and futuristic technologies.
What Are Silicate Ceramics?
Silicate ceramics are inorganic, non-metallic materials composed primarily of silica (silicon dioxide, SiO₂) and other metallic oxides. The fundamental building block of all silicates is the silica tetrahedron, a structure where one silicon atom is bonded to four oxygen atoms. These tetrahedra can link together in various ways—forming chains, sheets, or complex three-dimensional networks—which gives rise to the vast diversity of silicate minerals and, consequently, silicate ceramics.
The manufacturing process typically involves mixing raw materials like clay, feldspar, and quartz, shaping the mixture, and then firing it at high temperatures in a kiln. This process, known as sintering, causes the particles to fuse, creating a dense, hard, and durable ceramic body. The final properties of the silicate ceramic depend heavily on the raw material composition and the specific firing conditions.
Key Properties of Silicate Ceramics
The unique structure of silicate ceramics gives them a set of desirable properties that make them suitable for a wide range of uses. While characteristics can vary based on composition and manufacturing, most share several core attributes.
High-Temperature Stability
One of the most significant advantages of silicate ceramics is their ability to withstand high temperatures without significant degradation. Their strong atomic bonds and high melting points allow them to maintain their structural integrity and strength even when exposed to extreme heat. This makes them ideal for applications like furnace linings, kiln furniture, and insulators in high-temperature environments.
Electrical Insulation
Most silicate ceramics are excellent electrical insulators. They have very few free electrons to conduct electricity, giving them high electrical resistivity. This property is crucial for applications in the electronics industry, where they are used to make substrates for circuits, insulators for spark plugs, and housings for electrical components.
Chemical Inertness
Silicate ceramics are generally resistant to chemical attack from acids, bases, and organic solvents. This chemical stability makes them durable materials for storing and processing corrosive substances. Labware, chemical pipelines, and protective coatings often rely on the inert nature of silicate ceramics to prevent corrosion and contamination.
Mechanical Hardness and Wear Resistance
These materials are known for their hardness and resistance to wear and abrasion. The strong covalent and ionic bonds within their crystal structure make them difficult to scratch or deform. This makes them suitable for applications involving friction and wear, such as grinding media, cutting tools, and wear-resistant tiles. However, this hardness is often accompanied by brittleness, meaning they can fracture under sharp impact.
Major Types of Silicate Ceramics
The silicate family is vast, with different compositions leading to distinct types of ceramics. These can be broadly categorized based on their primary raw materials and resulting properties.
Earthenware, Stoneware, and Porcelain
These three materials are often called “whitewares” and represent the most traditional forms of silicate ceramics.
- Earthenware: Made from common clays and fired at relatively low temperatures (around 1000-1150°C), earthenware is porous and less strong. It’s commonly used for pottery, decorative tiles, and bricks.
- Stoneware: Fired at higher temperatures (1200-1300°C), stoneware is denser and less porous than earthenware. It is stronger and more durable, making it suitable for kitchenware, bakeware, and drainage pipes.
- Porcelain: Composed of refined materials like kaolin clay and feldspar, porcelain is fired at very high temperatures (up to 1400°C). The result is a highly dense, non-porous, and translucent material known for its strength and beauty. It is used for fine china, electrical insulators, and dental crowns.
Refractory Ceramics
Refractories are silicate ceramics specifically designed to withstand extreme temperatures (above 1500°C) and harsh chemical environments. Materials like fireclay, mullite, and silica bricks fall into this category. They are essential for lining furnaces, kilns, incinerators, and reactors used in metal, glass, and cement production. Their ability to provide thermal insulation and resist thermal shock is critical for these industrial processes.
Glass-Ceramics
Glass-ceramics are a unique class of silicate materials that start as glass and are then transformed into a crystalline ceramic through controlled heat treatment. This process, called ceramming, results in a material with an extremely fine-grained, non-porous structure. Glass-ceramics combine the manufacturability of glass with the superior strength, toughness, and thermal shock resistance of ceramics. They are used in cookware, cooktops, and high-performance optical and electronic components.
Cement and Concrete
While not always thought of as traditional ceramics, cement and concrete are fundamentally silicate-based materials. Portland cement is produced by heating limestone and clay (which contains silicates) in a kiln. When mixed with water, sand, and gravel, it forms concrete, the most widely used construction material in the world. The hydration of the silicate compounds in cement creates a binding matrix that gives concrete its strength and durability.
Common Applications Across Industries
The versatile properties of silicate ceramics enable their use in a diverse array of applications, spanning from everyday objects to highly specialized technologies.
- Construction: Bricks, tiles, cement, and sanitary ware are all fundamental building materials derived from silicate ceramics. Their durability, low cost, and fire resistance make them essential to the construction industry.
- Electronics: As excellent insulators, silicate ceramics are used to produce substrates for integrated circuits, spark plug insulators, and protective housings for various electronic devices.
- Household Goods: From dinner plates and coffee mugs (porcelain and stoneware) to glass-ceramic cooktops, silicate ceramics are a staple in modern homes.
- Manufacturing and Heavy Industry: Refractory bricks line high-temperature furnaces, and ceramic components are used as wear-resistant parts in machinery and as grinding media for processing raw materials.
- Biomedical: Biocompatible silicate ceramics, such as certain glass-ceramics and porcelains, are used in dental implants, bone replacements, and crowns due to their strength and chemical stability within the human body.
Frequently Asked Questions (FAQs)
What is the main component of silicate ceramics?
The main component is silica (SiOâ‚‚), which forms a tetrahedral structure with one silicon atom bonded to four oxygen atoms. This structure is the fundamental building block for all silicate materials. Raw materials like clay, feldspar, and quartz are common sources of silica.
Are glass and ceramics the same thing?
No, but they are related. Glass has an amorphous (non-crystalline) atomic structure, where atoms are arranged randomly. Ceramics, on the other hand, typically have a crystalline or semi-crystalline structure. However, many silicate ceramics are derived from raw materials also used in glassmaking, and glass-ceramics are materials that are converted from a glassy state to a crystalline ceramic state.
Why are silicate ceramics brittle?
Silicate ceramics are brittle due to their strong ionic and covalent bonds, which create a rigid atomic lattice. While these bonds make the material hard, they do not allow for easy dislocation movement, which is how metals deform. Instead of bending, the material fractures when the stress exceeds its limit, leading to brittleness.
What is the difference between porcelain and earthenware?
The main differences are the raw materials, firing temperature, and resulting properties. Earthenware is made from common clays fired at lower temperatures, making it porous and less durable. Porcelain is made from refined clays like kaolin, fired at very high temperatures, resulting in a dense, non-porous, and strong material.
Can silicate ceramics be recycled?
Recycling silicate ceramics can be challenging. Traditional ceramics like bricks and tiles are often crushed and reused as aggregate in construction materials like concrete or road fill, which is a form of downcycling. High-purity technical ceramics are more difficult to recycle due to their specific compositions and potential for contamination.
Final Words
Silicate ceramics are a testament to how fundamental materials can shape human civilization. Their journey from simple clay pottery to advanced components in aerospace and electronics showcases their incredible adaptability. By manipulating the basic building block of the silica tetrahedron, material scientists have developed a vast range of materials tailored for specific and demanding functions.
The combination of high-temperature resistance, electrical insulation, hardness, and chemical stability ensures that silicate ceramics will remain vital. As technology advances, the demand for materials that can perform under extreme conditions will only grow. Ongoing research continues to push the boundaries, creating new compositions and innovative manufacturing techniques to further enhance the performance of these remarkable materials, securing their place in the future of engineering and technology.
